Huayang Crystal Silicon Phosphorus can thoroughly remove rust water, yellow water and scaling Magic ball "huayang crystal silicon phosphorus corrosion and scale inhibitors," away, non-toxic, colorless, odorless and in the United States, the FDA GPAS as food additives. "P" is the silicon huayang of phosphate/silicon polymer etc of slow soluble polymers, appearance for glass ball shape, can prevent the carbonate scaling and scale formation of iron. One of the P - P, dissolved in water with metal ions from the reaction, prevent oxidation reaction to continue hydrogen ferrous iron into hydrogen, namely, and passivation tube wall can generate a protective (1UM), strong corrosion function. "Huayang crystal silicon phosphorus" corrosion and scale inhibitors, "red away dirty water" and blocked buster. "Huayang crystal silicon phosphorus" is very easy to use, does not require less maintenance, head pressure loss of power consumption of tiny, User every 3-6 months, can complement again medicine automatically with the added water water, "huayang crystal silicon phosphorus every tons of water," only 1-3 grams, can satisfy anti-scaling membrane effect.
|

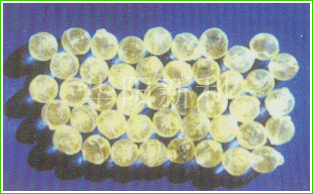

Huayang crystal silicon phosphorus |
|

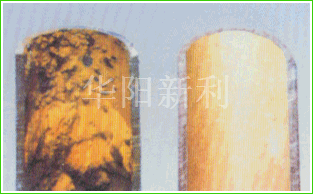

Before and after processing piping |
|

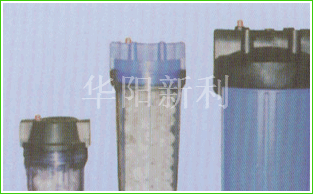

Small automatic dosing device |
|

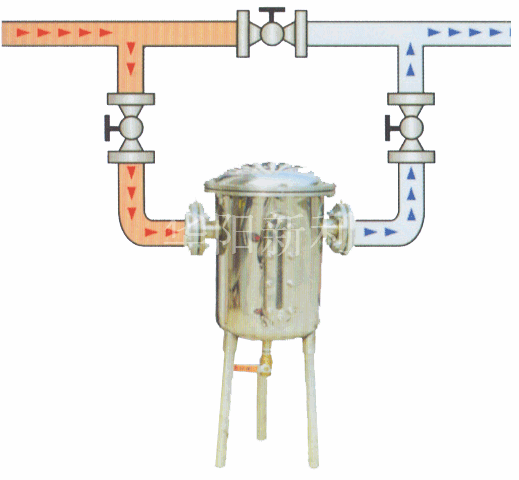

Dosing tank installation drawing |
Used in hotel, hospital, school of high-rise buildings, bath, hot water boiler, tea boiler (water), heat exchanger, heating furnace of rustproof anti-scaling. The north, northeast of users for use in a very short time to solve water, yellow rust and scaling problems, the effect is very significant.
Note: 1,and dosing and carbon steel and stainless steel pot is plastic (small) three kinds of material. 2,and ordinary dosing cans can withstand 0.6 Mpa pressure, another for bear 1.0 Mpa and 1.6 Mpa of dosing cans. 3,and dosing device installation should be far away from heat, prevent water back. 4, long after discontinuation, when will the water discharge and medicine, 1-2 times. |
|
|

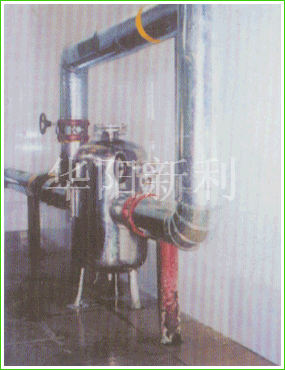

The friendship hotel installations |

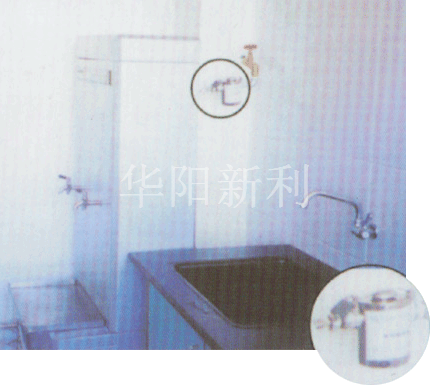

Electric water boiler installations |
Models of "Huayang crystal silicon phosphorus automated dosing device" |
Model |
Filling water per day (tons)
|
Dosing device volume (l)
|
External diameter (mm)
|
Dosing device height (mm)
|
FCH-A1 |
〈1 |
0.5 |
DN15 |
<100 |
FCH-A2 |
2-4 |
1 |
DN20 |
<150 |
FCH-A3 |
5-10 |
2 |
DN40 |
185 |
FCH-A4 |
11-15 |
5 |
DN40 |
265 |
FCH-A5 |
16-20 |
7 |
DN40 |
310 |
FCH-A6 |
21-35 |
10 |
DN50 |
345 |
FCH-A7 |
36-59 |
20 |
DN50 |
380 |
FCH-A8 |
60-85 |
30 |
DN80 |
680 |
FCH-A9 |
86-110 |
40 |
DN80 |
680 |
FCH-A10 |
111-170 |
50 |
DN100 |
840 |
FCH-A11 |
171-220 |
80 |
DN100 |
950 |
FCH-A12 |
221-290 |
100 |
DN150 |
950 |
FCH-A13 |
291-450 |
150 |
DN150 |
1130 |
FCH-A14 |
451-750 |
200 |
DN150 |
1140 |
FCH-A15 |
751-1000 |
250 |
DN200 |
1500 | |
